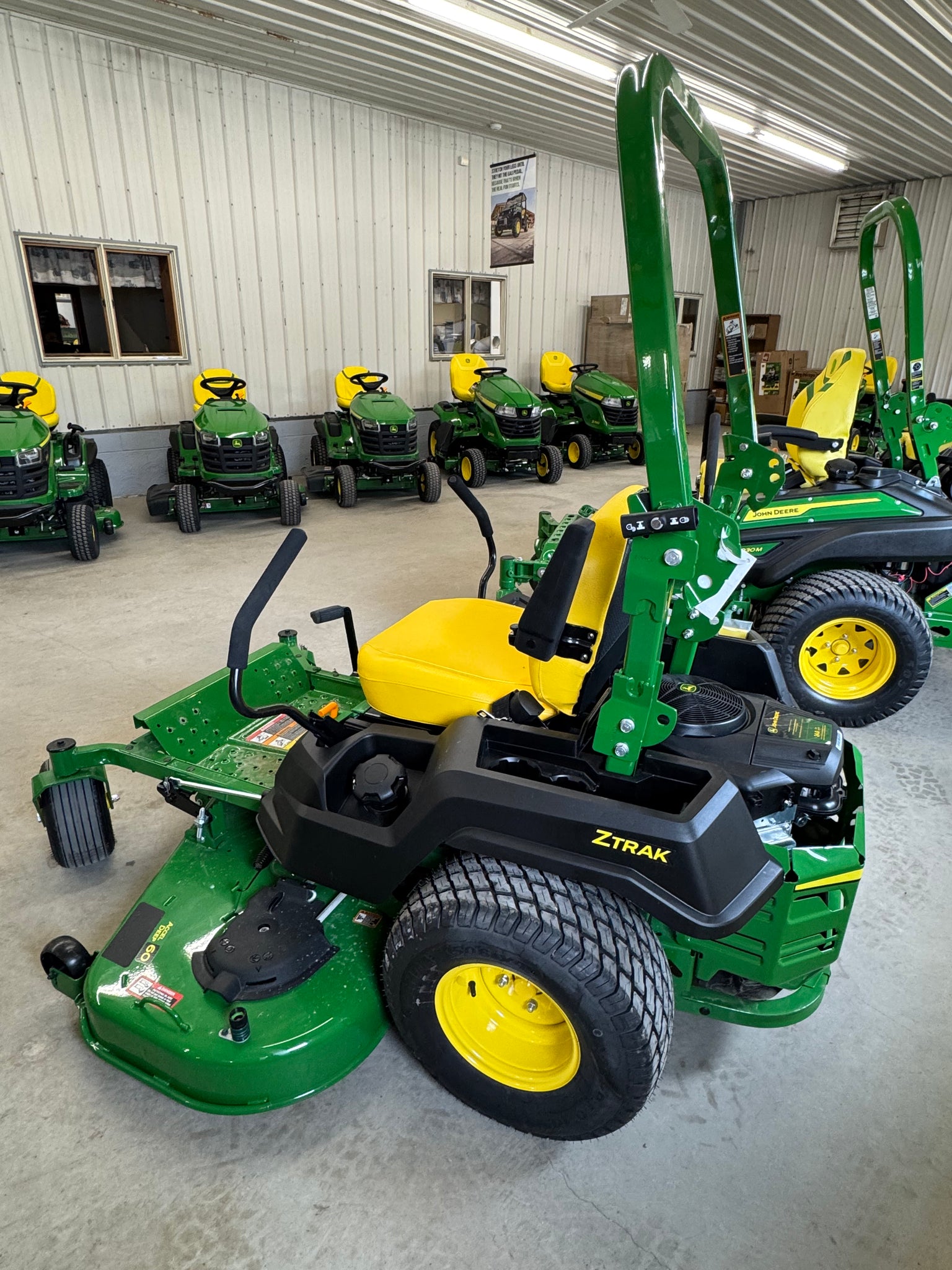

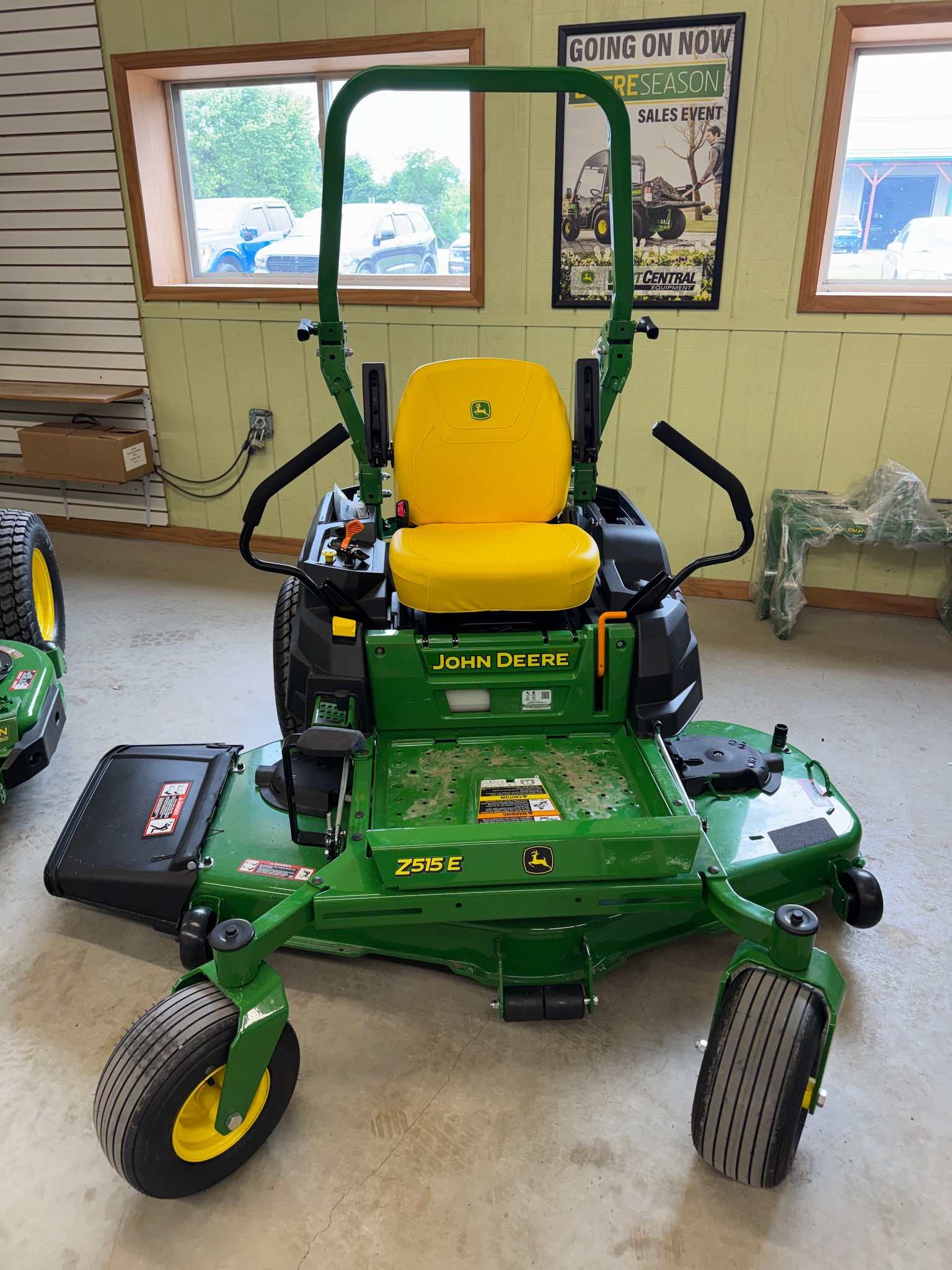

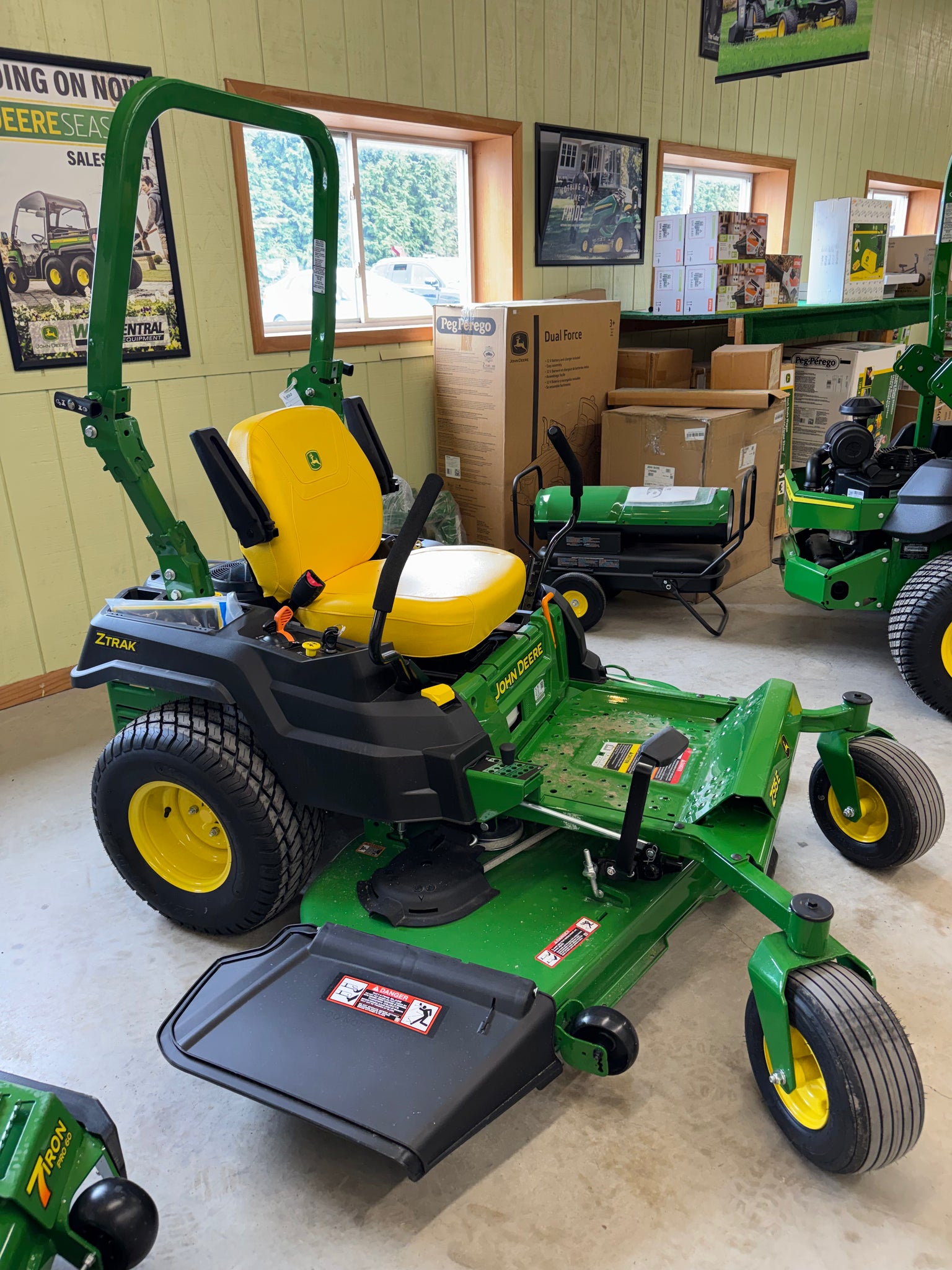

Z515E with 60” Deck

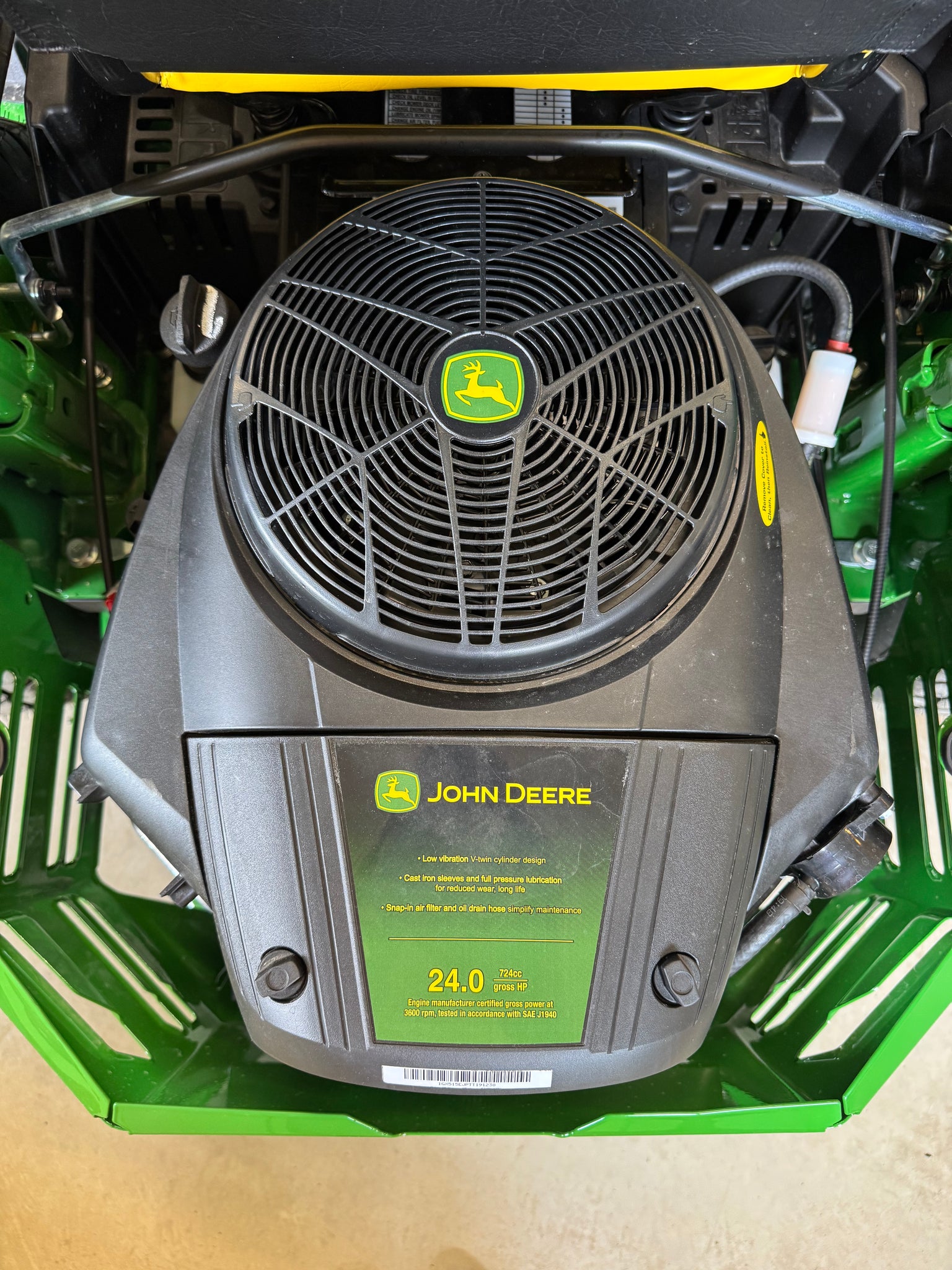

ENGINE: 24 Horsepower * (17.8kW)
V-Twin Design
Cast Iron Cylinder Liners
Full Pressure Lubrication with Replaceable Oil Filter
Air Cooled
Folding Two Post ROPS (Roll-Over Protective Structure)
ACCEL DEEP DECK CUTTING SYSTEM: 60 In. Side Discharge
.25 In. Cut Height Increments
1 to 4 In. Cutting Heights
4 Point lifting system
Foot lift system with transport lock out
Mulch Capable with Kit
Wash Port
FUEL SYSTEM: 4.5 U.S. Gallon Fuel Tank Capacity
Gasoline
Fuel level dash indicator
ELECTRICAL SYSTEM: 12 Volt Battery
Battery Hour Meter
Seat/PTO Interlock Switches
Electric Mower/Implement PTO Drive Clutch
TRANSMISSION: Tuff-Torq TZT7-U 8.0 mph Forward,
4.0 mph Reverse Travel Speed
Twin Stick Speed & Direction Control Levers
Tow Valves
Zero Turning Radius
Easy Access Tracking Adjustment
TIRES: 13X6.5-6 Front Caster Wheel Tires
22X9.5-10 Rear Turf Drive Tires
SEAT: 18 In. Medium Back Seat
with seat belt and cargo net
3 In. Seat Adjustment Travel
MISCELLANEOUS: 2 Cup Holders
Storage Compartment
Flip up Foot Platform for Easy Service Access
18 Position Adjustable Motion Control Levers
Weight--768 lbs.
